Candidate Models / Nautitech 395
The Nautitech 395 is an earlier Mortain & Mavrikios design (mid/late 1990s era). It is comfortably under the 63 ft mast clearance limit, but many published sources list an LWL slightly below your 38 ft minimum.
| Parameter | Target |
|---|---|
| LWL | 38-48 ft (11.58-14.63 m) |
| LOA | 39-52 ft (11.89-15.85 m) |
| Beam | 21-26 ft (6.40-7.92 m) |
| Draft | 3 ft 9 in-5 ft 4 in (1.14-1.63 m) |
| Bridge deck clearance | >= 30 in (0.76 m) at loaded displacement (lowest point); prefer ~33 in (0.84 m) |
| Waterline to mast tip (max) | 63 ft (19.20 m) |
| Parameter | Target | Actual | Fit |
|---|---|---|---|
| LWL | 38-48 ft (11.58-14.63 m) | 37 ft 1 in (11.30 m) | Fail (11 in short) |
| LOA | 39-52 ft (11.89-15.85 m) | 39 ft 4 in (11.99 m) | OK |
| Beam | 21-26 ft (6.40-7.92 m) | 21 ft 0 in (6.40 m) | OK |
| Draft | 3 ft 9 in-5 ft 4 in (1.14-1.63 m) | 4 ft 0 in (1.22 m) | OK |
| Bridge deck clearance | >= 30 in (0.76 m); prefer ~33 in (0.84 m) (loaded) | TBD (measure at loaded displacement; lowest point) | TBD |
| Waterline to mast tip | ≤ 63 ft (≤ 19.20 m) | 49 ft 3 in (15.00 m) | OK |
Summary: the Nautitech 395 is a strong fit on air draft, beam, and draft, and just meets the baseline minimum beam. The main issue is that published LWL values are typically below 38 ft (close, but outside the stated requirement).

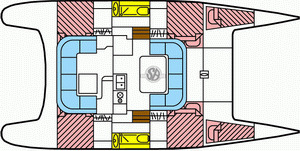

Typical layout is 4 cabins plus 2 forepeak berths (4+2), with galley/nav/saloon in the bridgedeck.
as-measured air draft including antenna/windex/light.
