Candidate Models / Fountaine Pajot Lucia 40 (2015-2019)
Specs summary: compact ~38.5 ft cruising catamaran (successor to the Lipari 41) with multiple common layouts (eg Maestro 3-cabin owner's vs Quatuor 4-cabin charter). This model is a close fit on beam and draft, but it appears to miss the stated envelope on LOA (slightly under 39 ft) and on waterline-to-mast clearance (typically quoted a few inches above 63 ft).
| Parameter | Target |
|---|---|
| LWL | 38-48 ft (11.58-14.63 m) |
| LOA | 39-52 ft (11.89-15.85 m) |
| Beam | 21-26 ft (6.40-7.92 m) |
| Draft | 3 ft 9 in-5 ft 4 in (1.14-1.63 m) |
| Bridge deck clearance | >= 30 in (0.76 m) at loaded displacement (lowest point); prefer ~33 in (0.84 m) |
| Waterline to mast tip (max) | 63 ft (19.20 m) |
| Parameter | Target | Actual (published) | Fit |
|---|---|---|---|
| LWL | 38-48 ft (11.58-14.63 m) | 38 ft 6 in (38.5 ft, Listings Port) | OK |
| LOA | 39-52 ft (11.89-15.85 m) | 38 ft 6 in (11.73 m, manufacturer/broker sources) | Close (under by ~6 in) |
| Beam | 21-26 ft (6.40-7.92 m) | 21 ft 9 in (6.63 m) | OK |
| Draft | 3 ft 9 in-5 ft 4 in (1.14-1.63 m) | ~3 ft 11 in (1.20 m) | OK |
| Bridge deck clearance | >= 30 in (0.76 m); prefer ~33 in (0.84 m) (loaded) | TBD (measure at loaded displacement; lowest point) | TBD |
| Waterline to mast tip | ≤ 63 ft (≤ 19.20 m) | 63 ft 4 in (19.3 m, brochure) to ~63 ft 8 in (Listings Port) | No (over by ~4-8 in) |

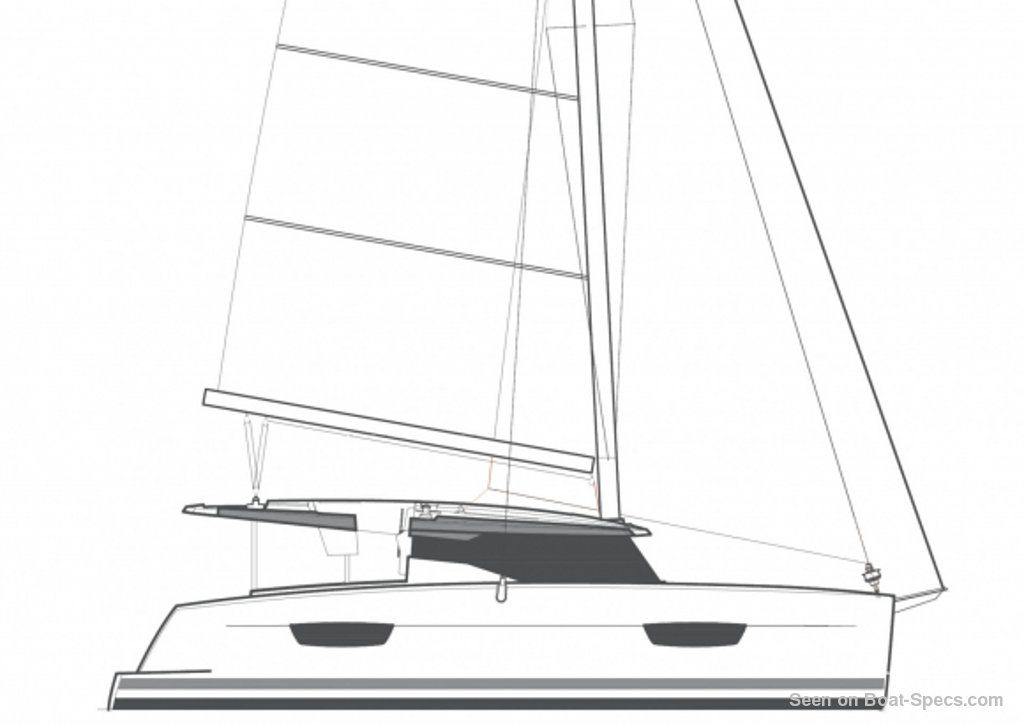

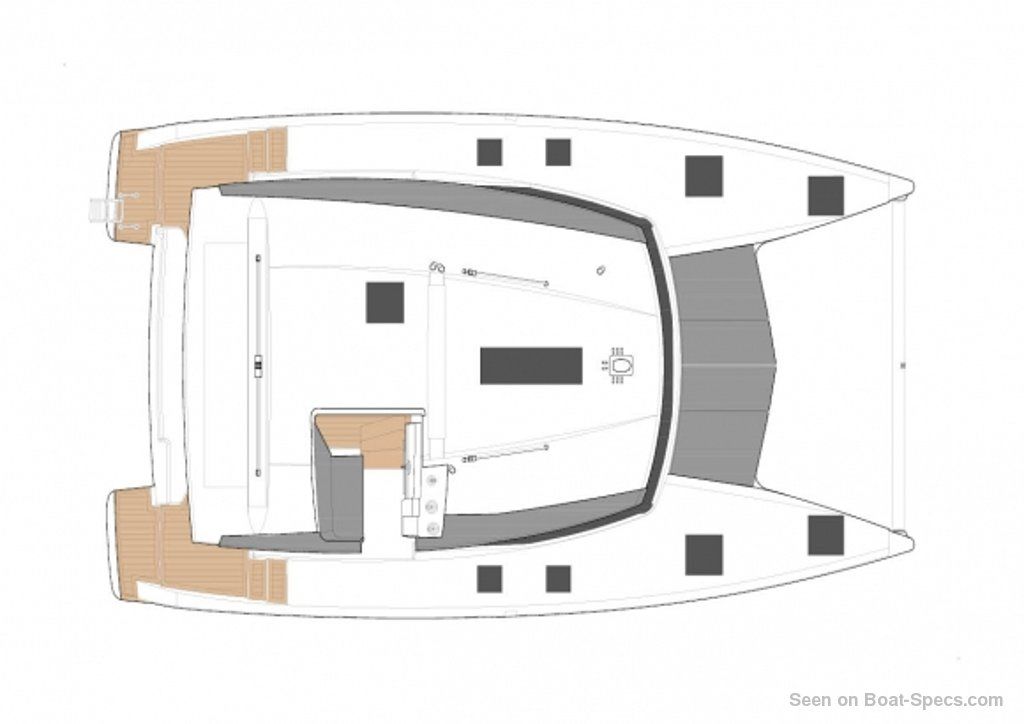

Layouts vary; below are representative plan images (via Boat-Specs).
